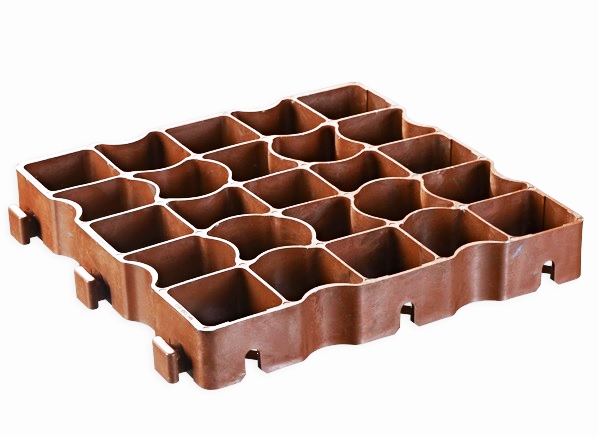

The Professional Tournament Grid EcoRaster TS50


The TS50 Professional Tournament equine grid. With all of the benefits and features of the TE30, The TS50 is specifically designed for even more flexibility for tournament events of all riding disciplines including western events!

Product description


Ecoraster TS50 is designed for competition riding rings and arenas. The TS50 combined with quality footing provides the best riding surface possible, in both temporary and permanent riding venues.


The ECORASTER TS50 is a custom designed tournament grid for the professional arenas and rings.


The TS50 has outstanding flexibility, stability, resistance to repetitive loading, and safety for horse and rider. Thanks to the robust design our TS50 is also perfect for all other high intensity equestrian sports, including western events


Suitable for

  • Riding rings and arenas



Downloads

Technical data

Dimensions:

 330 x 330 x 50 mm
Wall Thickness:

 2,5 mm
Load Bearing:

 120 tons per square meter
Weight per square meter:

  6,84 kg per square meter
Weight Per Unit:

 0,76 kg
Height:

 50 mm
Composition:

 100% Recycled LDPE
Pressure Rating:

 20 Tons Per Axle according to DIN 1072
Dimensional Stability:

 0.5 % (temperatures -50 to 90 degrees)
Moisture Absorbtion:

 0.01 %
Environmental Neutrality:

Environmentally Neutral According to DIN 38412
Solubility:

 Resistant  to acids, bases, alcohols, oils, benzine, salts, ammonia, acid rain etc.
